MPQ2166GD-AEC1-Z Buck Switching Regulator IC Positive Adjustable 0.6V 2 Output 2A/2A, 3A/1A 18-VFQFN

Brand Name : MPS

Model Number : MPQ2166GD-AEC1-Z

Certification : RoHS

Place of Origin : America

MOQ : 5000 PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 15K PCS

Delivery Time : 2-3 DAYS

Packaging Details : 5000 PCS/Tape

Manufacturer : Monolithic Power Systems Inc.

Category : Voltage Regulators - DC DC Switching Regulators

Product Number : MPQ2166GD-AEC1-Z

Package : Tape & Reel (TR)

Output Type : Positive

Number of Outputs : 2

Input Voltage-Max : 6V

Input Voltage-Min : 2.7V

Output Voltage-Max : 5.5V

Output Voltage-Min : 0.6V

Output Current : 2A/2A, 3A/1A

Topology : BUCK

Switching Frequency : Up ~ 3MHz

Operating temperature : -40°C ~ 125°C

Contact Now

Datasheet:MPQ2166GD-AEC1-Z

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 2A 21-PowerVFQFN

Features:

● Wide Input Voltage Range o 2.7V to 6V

●Differential Output Voltage Remote Sense

●Programmable Accurate Current Limit Level

● 2A Output Current

●Proprietary Switching Loss Reduction Technique

●Adaptive COT for Ultrafast Transient Response

●Stable with Zero ESR Output Capacitor

Description:

TheMPQ2166GD-AEC1-Z range with excellent load and line regulation.The MPQ2166GD-AEC1-Z over a wide output current load range.MPQ2166GD-AEC1-Zadopts internally compensated operates at high efficiencyoffers a very compact solution to achieve up to2A output current over a wide input supplyis a fully integrated, high frequency, synchronous buck converter. It

constant-on-time (COT) control mode thatprovides fast transient response and eases loop

stabilization.

Quick Detail:

Packaging	Tape & Reel (TR)
Manufacturer	Monolithic Power Systems Inc.
Manufacturer Product Number	MPQ2166GD-AEC1-Z
Description	IC REG BUCK ADJUSTABLE 2A 21QFN
Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output2A 21-PowerVFQFN

Product Attributes:

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Power Management (PMIC)
	Voltage Regulators - DC DC Switching Regulators
Mfr	Monolithic Power Systems Inc.
Package	Tape & Reel (TR)
Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Voltage - Input (Min)	2.7V
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	0.6V
Voltage - Output (Max)	5.5V
Frequency - Switching	Up ~ 3MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	21-PowerVFQFN
Supplier Device Package	21-QFN (3x4)
Base Product Number	MPQ2167

Additional Resources:

ATTRIBUTE	DESCRIPTION
Standard Package	5000

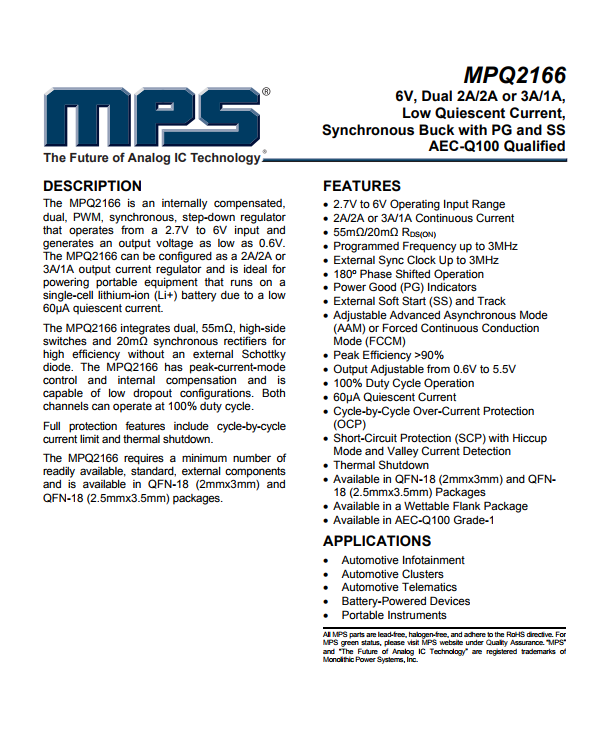

Data Picture:

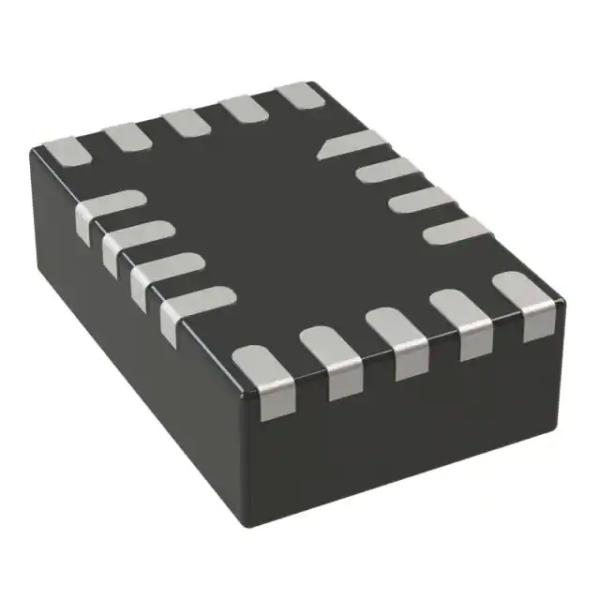

MPQ2166GD-AEC1-Z Buck Switching Regulator IC Positive Adjustable 0.6V 2 Output 2A/2A, 3A/1A 18-VFQFN

MPQ2166GD-AEC1-Z Buck Switching Regulator IC Positive Adjustable 0.6V 2 Output 2A/2A, 3A/1A 18-VFQFN Images
