AD5791BRUZ 20 Bit Digital to Analog Converter 1 20-TSSOP

Product Categories

Shenzhen Zhaocun Electronics Co., Ltd.

Contact Now

Brand Name : ADI

Model Number : AD5791BRUZ

Certification : RoHS

Place of Origin : Analog Devices Inc.

MOQ : 75 PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5K PCS

Delivery Time : 2-3 DAYS

Packaging Details : 75 PCS/Tube

Category : Digital to Analog Converters (DAC)

Mfr : Analog Devices Inc.

Package : Tube

Number of Bits : 20

Number of D/A Converters : 1

Settling Time : 1µs (Typ)

Output Type : Voltage - Unbuffered

Data Interface : SPI, DSP

Reference Type : External

Voltage - Supply, Analog : 7.5V ~ 16.5V, -2.5V ~ 16.5V

Voltage - Supply, Digital : 2.7V ~ 5.5V

Operating Temperature : -40°C ~ 125°C

Contact Now

Quick Detail:

Manufacturer	Analog Devices Inc.
Manufacturer Product Number	AD5791BRUZ
Description	IC DAC 20BIT V-OUT 20TSSOP
Detailed Description	20 Bit Digital to Analog Converter 1 20-TSSOP

Product Attributes:

TYPE	DESCRIPTION
Category	Digital to Analog Converters (DAC)
Mfr	Analog Devices Inc.
Package	Tube
Product Status	Active
Number of Bits	20
Number of D/A Converters	1
Settling Time	1µs (Typ)
Output Type	Voltage - Unbuffered
Differential Output	No
Data Interface	SPI, DSP
Reference Type	External
Voltage - Supply, Analog	7.5V ~ 16.5V, -2.5V ~ 16.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±1, ±1
Architecture	R-2R
Operating Temperature	-40°C ~ 125°C
Package / Case	20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	20-TSSOP
Mounting Type	Surface Mount
Base Product Number	AD5791

Additional Resources:

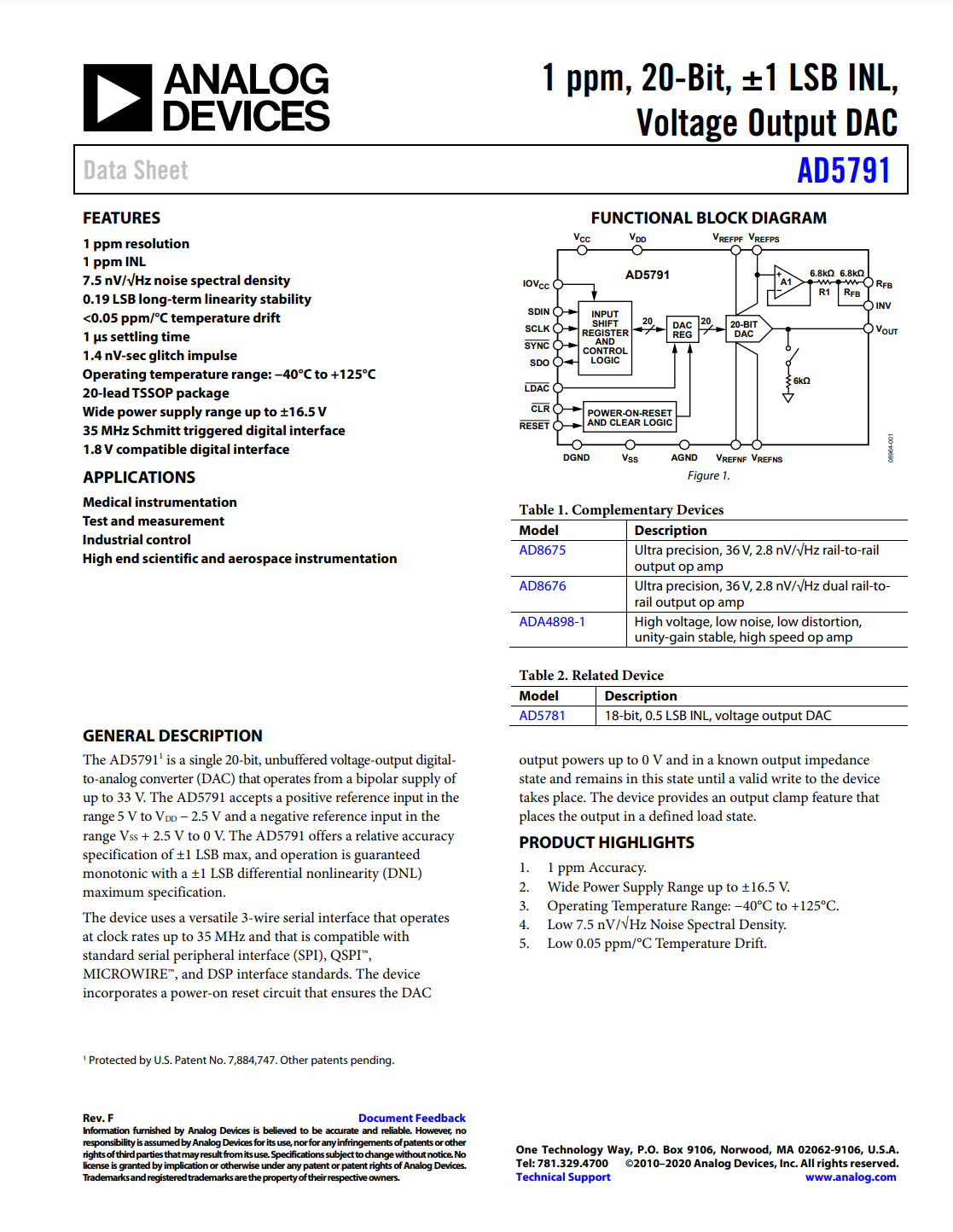

Data Picture:

AD5791BRUZ 20 Bit Digital to Analog Converter 1 20-TSSOP

AD5791BRUZ 20 Bit Digital to Analog Converter 1 20-TSSOP Images
