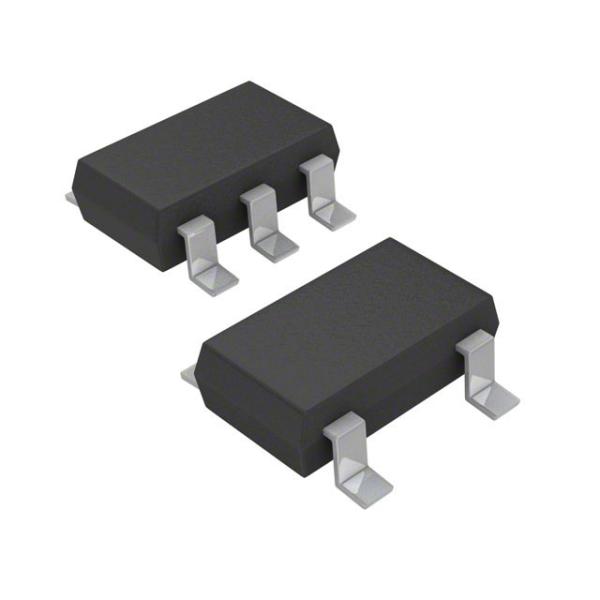

MP150GJ-Z Converter Offline Boost, Buck, Buck-Boost, Flyback Topology TSOT-23-5
Product Attributes:
| Category | AC DC Converters, Offline Switches |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Active |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 500V |
| Topology | Boost, Buck, Buck-Boost, Flyback |
| Voltage - Supply (Vcc/Vdd) | 5.3V ~ 5.6V |
| Power (Watts) | 2 W |
| Fault Protection | Open Loop, Over Load, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Mounting Type | Surface Mount |
| Base Product Number | MP150 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 1589-1855-6 |
| 1589-1855-ND |
| 1589-1855 |
| 1589-1855-1 |
| 1589-1855-2 |
| Standard Package | 3000 |
DESCRIPTION
MP150 is a primary-side regulator that provides accurate constant voltage (CV) regulation without the opto-coupler, and supports Buck, Buck-boost, Boost and Flyback topologies. It has an integrated 500V MOSFET that simplifies the structure and reduces costs. These features help to make it a competitive candidate for offline low power applications, such as home appliances and standby power.
MP150 is a green-mode operation regulator. Both the peak current and switching frequency decrease as the load decreases to provide excellent efficiency performance at light load, thus improving the overall average efficiency.
The MP150 features various protections, including thermal shutdown (TSD), VCC undervoltage lockout (UVLO), over-load protection (OLP), short-circuit protection (SCP), and open loop protection.
MP150 is available in the TSOT23-5 and SOIC8 packages.
FEATURES
Primary-side constant voltage (CV) control, supporting Buck, Buck-boost, Boost and Flyback topologies
Integrated 500V/30Ω MOSFET
< 150mW No-load power consumption
Up to 2W output power
Maximum DCM output current less than 120mA
Maximum CCM output current less than 200mA
Frequency foldback
Maximum frequency limitation
Peak current compression
Internal high-voltage current source
APPLICATIONS
Home Appliance, White Goods and Consumer Electronics
Industrial Controls
Standby Power
